Products > Color Doppler >

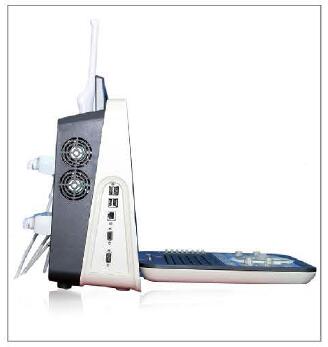

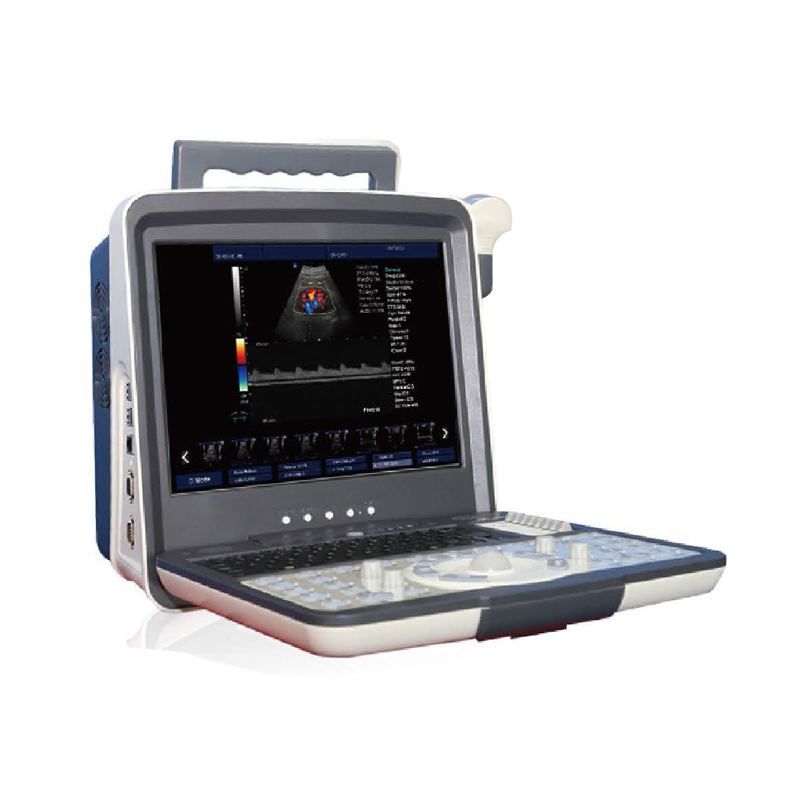

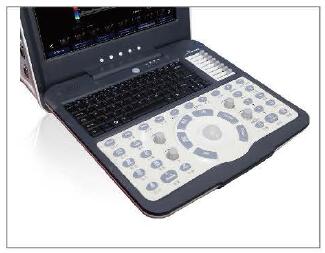

Product name: Portable Color Doppler
  • Packaging Details:
  • Delivery Time:
DETAILED

Technical Parameters:

  • Monitor: 15" high-resolution LCD color monitor
  • Gray scale : 256
  • Scanning lines :≥256
  • Dynamic Range: 30dB-75dB
  • Maximum frame rate :主65/s
  • Pseudo-color display : 11
  • Note: body mark and character note, body mark: ≥100
  • Cine loop: ≥100 frame
  • Image memory :≥160G, format BMP/JPG/DCM/TIF
  • TGC: ≥8
  • Partial enlarged :≥4 times
  • Image mode: B, BB, 4B, B+M , M, PWD, PwrD, CD, CWD, DirPwr, B+C+D.
  • Image processing : 8 frame-related , 6 related to six-speed lines
  • Image flip : up and down , left and right , image rotation ( 2B, 4B mode rotated 90° ) , black and white DICOM3.0 interface with network remote assistance software
  • Sampling frame size, position and color : support B /color consistent width adjustable

  • Pulse repetition frequency : 0.5-2khz , 6 adjustable
  • Gain: 20dB-48dB , grading adjustable
  • Wall fiIter : 40-500 adjustable
  • Noise Reduction : 32 adjustable
  • Sample volume: 0.5-10mm adjustable range 20
  • Scan speed : 8 adjustable
  • Support synchronous updates automatically trace and spectral inversion
  • Baseline position, spectrum volume and correction
  • angle: adjustable
  • Blood flow measurement velocity:
  • a) Maximum blood flow velocity measurement : pulse doppler > 2m/s
  • b) Lowest measured blood flow velocity : <2mm /s (non-noise signals)
  • Port and holder : 4 activated probe ports and holders, 1 Gel heater holder
  • Input / Output Interface : USB2.0 , LAN , VGA , RS232 , Video, DICOM3.0, foot switch, XGA, DVD burner



Measurement:

  • Mode B (2D) measurement
  • a) General measurement: distance, perimeter, area, volume,distance narrower radio, area stenosis ratio.
  • b) Gynecological measurement: uterine size and volume, cervix size and volume, right/left ovary size and volume, endometrial thickness, right/left follicle volume.
  • M mode measurements: distance, heart rate
  • Doppler measurements: General measurement: systolic and end-diastolic velocity, peak flow, time, blood flow, pulse index and heart rate.




Standard Configuration :

  • Scanner Body: 1pc
  • 3.5Mhz Convex Probe: 1pc
  • Charger with a Set of Wires: 1set
  • Bottle of USG gel: 1pc
  • User Manual: 1pc
  • USB disk: 1pc

Optionals:

  • Micro-convex probe
  • Phased array probe
  • Trans-virginal probe
  • Linear probe
  • Printer



Measurement:

3D imaging twins



Transvaginal color doppler



Thyroid color doppler



Venous distension reflux



Real-time three simultaneous

Reflux spectral doppler

Abdominal color doppler

Cardiac color doppler
