Products > Veterinary Ultrasound Scanner >
Product name: Waterproof Veterinary Ultrasound Scanner/Machine
  • Packaging Details:
  • Delivery Time:
DETAILED

Application:

Mainly Application : swine , sheep , bovine , equine , camel , alpaca , dog , cat , rabbit and etc

Image smoothing, filtering, edge enhancement, frame correlation, linear interpolation and other processing, the image is crisp and clear, high resolution.
Measured for distance, perimeter, area, obstetric and etc.
Individually adjustable near field, far field gain (5 stage adjustable).
Single-B display, continuous real-time status in the field of vision to move the function.
With display playback, gamma correction, histogram and other image processing functions.
With built-in memory, and has an external USB interface, the built-in memory data transfer to PC.
Light weight and convenient.



Parameters

  • Monitor size: 7”-TFT
  • Detect Depth(mm): ≥50
  • Resolution(mm): Lateral, ≤2(depth≤80); Axial, ≤1(depth≤80)
  • Blind zone(mm): ≤3
  • Geometric position precision: Horizontal≤5; Vertical≤5
  • Display mode: B, B+B, B+M, M, 4B
  • Image gray scale: 256
  • Scan range: convex array, linear array
  • Scan lines: 512 lines/ frame
  • Frame rate: 30 frame/second
  • Digital scan converter: 512x512x8bits
  • Body marks: ≥15
  • Multi-frequency: 2MHz-10MHz
  • Memory capacity: ≥2GB
  • Video output: PAL
  • Battery: 3000Mah/7.4V
  • Battery continuous work: ≥3 hours
  • Machine dimension: 228mm x 152mm x 37mm
  • N.W: 900G

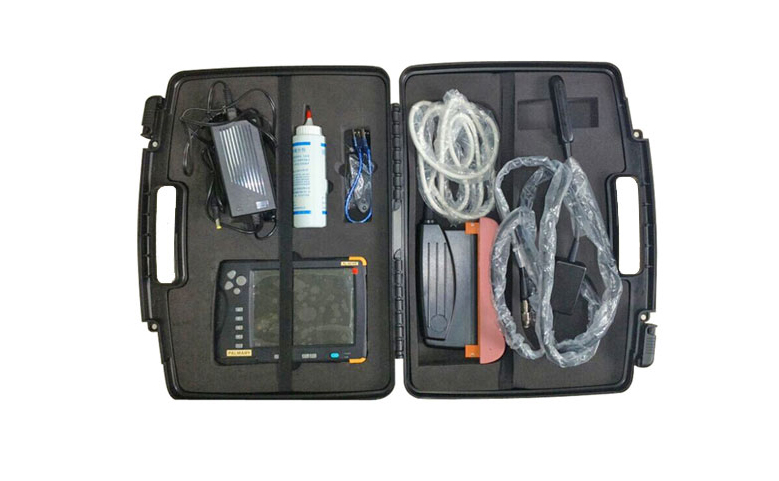

    Configuration

  • Scanner Body: 1pc
  • Li-ion Battery: 1pc
  • 3.5MHz Convex Probe: 1pc
  • Charger with a Set of Wires: 1set
  • Wrap Bag: 1pc
  • Bottle of USG gel: 1pc
  • Transportation Case: 1pc
  • User Manual: 1pc


    Optional :

  • 7.5MHz Linear Probe
  • 6.5MHz Rectal Probe
  • 5.0MHz Micro-convex Probe
  • Back-fat Probe
  • Video Printers
  • Video Goggles
  • Video Wire
