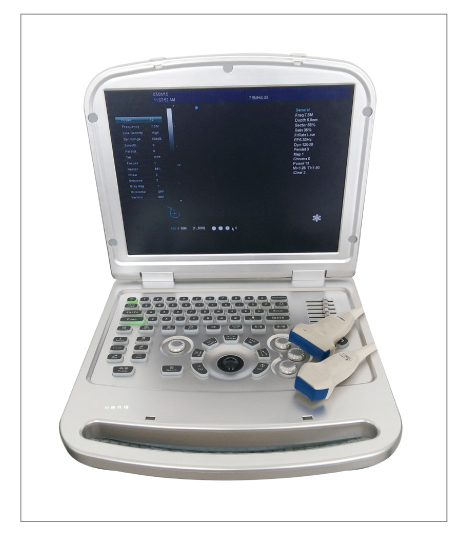

Product name: Laptop Color Doppler
  • Packaging Details:
  • Delivery Time:
DETAILED



Technical Parameters:

The system mainly applies in diagnosis of liver, gallbladder, spleen,kidney, pancreatic gland, heart and other organs, as well as obstetrics and gynecology examinations, blood vessel and tumor inspection.

  • Display: 15” LCD monitor
  • Display Mode: B, B/B, 4B, B/M, M, B+C, B+D, B+C+D, PDI, CF, PWD
  • Gray Scale: 256
  • Dyn Range: 0dB-160dB
  • Depth: ≥330mm
  • Blind Area: .≤5 mm
  • Channels: 64
  • Probe elements: 128
  • Cine-Ioop: ≥1000.
  • Lateral Resolution: .≤lmm (Depth ≤80mm),≤2mm (80Depth ≤130mm)
  • Axial Resolution: ≤1mm (Depth ≤80mm),≤2mm (80< Depth.≤130mm)
  • Geometry Position Precision: horizontal.≤ 10.%, vertical .≤10%
  • Storage Media: 64G massive image-storage capacity
  • Measurement and Calculation:
  • Basic measurement, abdomen, early/later obstetric. pelvis, urology, vascular , cardiac. small organs and etc.
  • B-mode Basic Measurements: distance, angle, perimeter and area, volume histograms. cross section
  • M-mode Basic Measurements: heart rate, time, distance, speed.



Imaging Pre-processing:

  • 8-segment TGC
  • Preset
  • Gain (B&W, Color, Doppler)
  • Audio
  • PRF
  • Dynamic Range
  • Image Enhancement
  • Acoustic Power





Imaging Post- processing:

  • Gray Map
  • Black/White Reverse
  • Left/Right Reverse
  • Up/Oown Reverse



Others:

  • USB Port: 2
  • Probe Connector: 2
  • Power Supply: (AC) 220V±22V 50Hz±1Hz
  • Continuous Working Hours: ≥8h
  • Extemal Display: PAL, VGA



Standard Configuration:

  • Scanner Body: 1pc
  • 3.5Mhz Convex Probe: 1pc
  • Charger with a Set of Wires: 1set
  • Bottle of USG gel: lpc
  • User Manual: 1pc

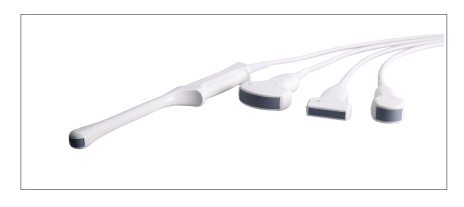

Optional:

  • 3.5Mhz Phased Array Probe
  • 6.5Mhz Trans-virginal Probe
  • 7.5Mhz Linear Probe
