Applicable range:
The device is applicable for hospitals and clinics for examining liver, GB, spleen, kidney, pancreas, heart, bladder, uterus, etc.
Features:
- The image can be displayed in real time, frozen, amplified, black- white reversed, up and down conversed and shift depth in real time.
- Video output is standard PAL and VGA; it is easily accessed to the equipment, such as the large screen monitor, videocassette recorder, video image printer, etc.

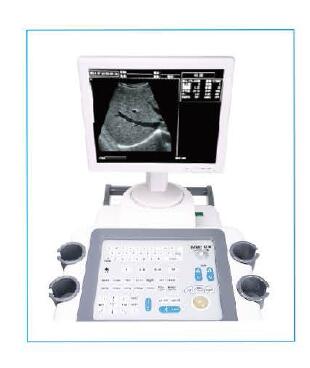

- Soft keyboard and track ball to make operation faster, convenient and flexible.

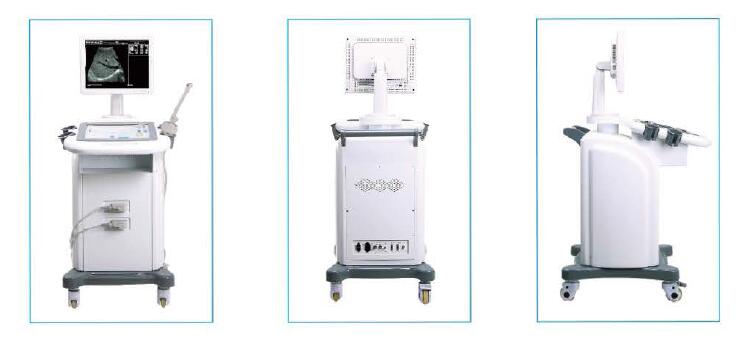

- The device is trolley structured with plastic cover. Switch power is used without working frequency transformer.
- FPGA and SMT in the device make the device high integrated, small volume and light weight.
- The device passed clinical verifications of safety and diagnosis validity in its manufacturing country.
|
Specifications:
- Display Depth (mm): ≥220
- Resolution(mm):Lateral ,≤3 (depth ≤80),≤4 (80 < depth ≤130);
- Axial,≤2(depth≤80),≤3 (80 < depth≤130)
- Dead Zone (mm): ≤5
- Geometry precision (%): Horizontal: ≤15; Vertical: ≤10
- Monitor screen: 15 inch
- Display mode: B, B+B, B+M, M
- Image gray scales: 256 scales
- Electronic focusing: 4 focuses combination randomly
- Magnification: x1.0, x1.2, x1.5, x2.0
- Cine-Ioop: 186 or 236 frames
- Image storage: 20 frames
- Pseudo-color unit: inside
- Image reverse: left/right, black/white, up/down
- Local Zoom: 2 times
- Depth shift: B, B+B modes real time shift
- Powder supply: 100V-130V/220V-240V, 50/60Hz
- Machine dimension (mm): 510*680*1240
|
 |
Standard Configuration :
- Scanner Body: 1pc
- 3.5Mhz Convex Probe: 1pc
- Charger with a set of wires: 1set
- Bottle of USG gel: 1pc
- User Manual: 1pc
|
Optionals :
- 5.0MHz Micro-convex Probe
- 6.5MHz Trans-vaginal Probe
- 7.5MHz Linear Probe
- Video Printer
|

|
