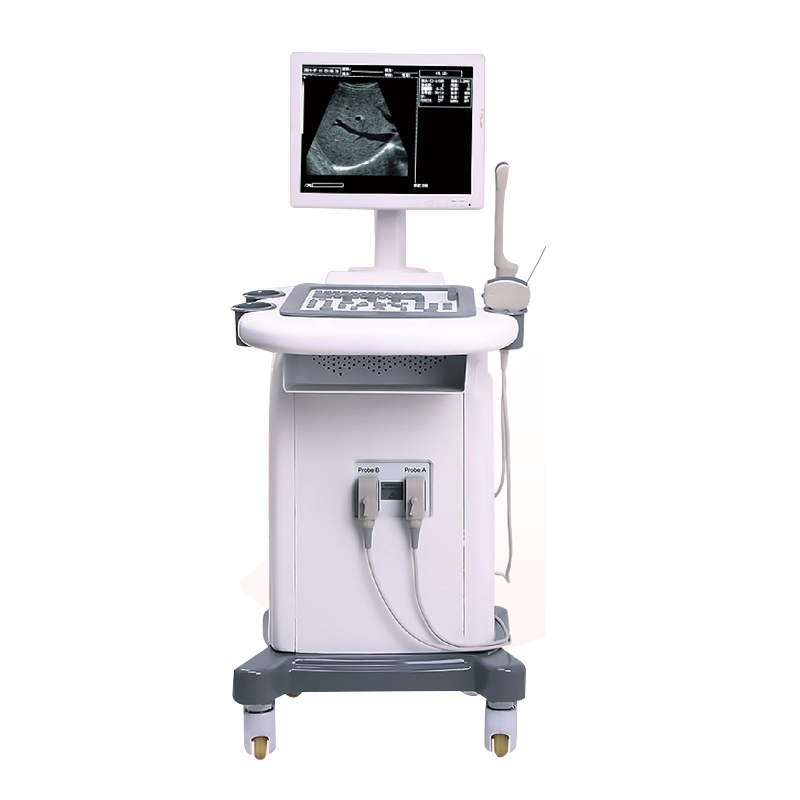

Product name: Full Digital Trolley Ultrasound Scanner
  • Packaging Details:
  • Delivery Time:
DETAILED





  • 15" monitor LCD
  • Full digital imaging technologγ
  • Two probes interface as standard
  • Scan depth: 40mm- 240mm
  • 809 fame cine loop & 32 images storage
  • Video output : PAL- D, VGA





Features:

  • The system uses micro computer technology, Digital Scanning Converter (DSC). variable aperture, multi-section dynamic focusing, high dynamic, low noise, wide band pre-amplifier, log compression, TGC control, dynamic filtering, edge
  • Enhancement and frame correlation
  • Those embedded components allow a clear, stable and high resolution image.
  • Power Supply: 100V-130V/220V-240V, 50/60Hz





    Standard configurations:

  • Main unit
  • 3.5Mhz convex probe
  • AII accessories


    Optional:

  • 6.5Mhz t rans-vaginal probe
  • 7 .5Mhz linear probe
  • Thermal video printer



Technical Specifications:

Probe Standard Optional
C3-1/60R/3.5MHz
convex probe
L3-1/7.5MHz
linear probe
EC 1-1/13R/6.5MHz trans-vaginal
probe
Probe frequency 2.5Mhz,3.5Mhz, 5.0Mhz 6.5Mhz,7.5Mhz,8.5Mhz 5.5Mhz,6.5Mhz, 7.5Mhz
Display depth (mm) 240 (max), 16 levels adjustable
Max detect depth (mm) ≥160 ≥80 ≥60
Resolution (mm) Lateral ≤2 (depth≤80)
≤3 (80 < depth≤1 30)
≤1 (depth≤60) ≤1 (depth≤40)
Axial ≤2 (depth≤80)
≤3 (80 < depth≤1 30)
≤1 (depth≤60) ≤1 (depth≤40)
Blind zone(mm) ≤5 ≤3 ≤7
Geometric position precision Horizontal ≤15 ≤5 ≤10
Vertical ≤10 ≤5 ≤5
Monitor size 15 inch
Display mode B 、B +B 、B+M 、M 、4 B
Image gray scale 256 level
Cine loop 809 frame (Max)
Image storage 32 frames
Scan angle Adjustable
Scan depth 40mm-240mm
Acoustic power 2 steps
Dynamic range 100dB-130dB
Image flip Up/down, left/right, black/white
Focus position Adjustable
Focal space 5 1evel
Measurement Distance, circumference, area, volume, heart rate. GA,FW,EDD and etc
Notation Date, time, name. sex, age, doctor, hospital name, Full screen words edit
Output report 2 types
Posture mark ≥40
Video output PAL-D, VGA
